Aperçu /Produits/Machine déshydratante de fruits/Large Food Processing Fruit 300kg Freeze Dryer Fruit Dehydrator Chinese Wolfberry Dehydrator

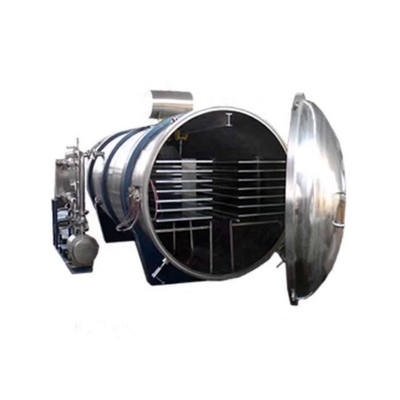

Large Food Processing Fruit 300kg Freeze Dryer Fruit Dehydrator Chinese Wolfberry Dehydrator

1.0 Units
MOQ
Large Food Processing Fruit 300kg Freeze Dryer Fruit Dehydrator Chinese Wolfberry Dehydrator
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Type: Vacuum Freeze Dryer
Application: Food Processing, Fruit Processing
Condition: New
Voltage: According to Customer's requirements
Power: Depending on the Machine
Key Selling Points: Easy to Operate
Warranty: 1 Year
Weight (KG): 7000
Applicable Industries: Food & Beverage Factory, Farms, Home Use, Other
Showroom Location: None
Marketing Type: Hot Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 2 years
Core Components: PLC, Compressor, Refrigerator, Vacuum Pump, Circulation Pump, Condenser, Drying Chamber
Heating Method: Steam Heating
Material: SUS304L, SUS304L Stainless Steel
Prix: Resonable Price
Product Type: Conductive Freeze Dryer
Advantage: Easy Operation High Efficiency
After-sales Service Provided: Online support, Video technical support
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: None
Certification: ISO CE FCC
Informations de base
Certification: ISO CE FCC
Conditions de paiement et expédition
Packaging Details: Small freeze dryer normally packed by wooden box and shipped by standard container. If export to European countries or North America countries, the wooden box will be fumigated.
Description de produit
Product Overview:

KFD-30 Vacuum Freeze Dryer

This freeze dryer is able to dry fresh food material without nutrition lost, and meanwhile preserves its original taste, flavor
and color. Any detailed parameters can be customized until it meets customers’ requirements.
Our product has one year warranty, and our team has years of experience in this freeze drying field.
For more detailed information, please contact us anytime!
Samples of Freeze Dried Chinese Wolfberry By using KFD-30
For other sample pictures of freeze dried food, please contact us.
Comparison of Direct Drying and Freeze Drying
Parameters:
Model
KFD-30
Power
380V/50Hz/3P(Can be customized)
Type
Radiant Type
Capacity(kg/batch)
300kg
Condenser Temperature(℃)
-50℃
Shelf Temperature(℃)
<100℃
Pre-freezing
in IQF(Individual Quick Freezer, provided with machine)
Usable Shelf Area(㎡)
30㎡
Number of Shelves
9+1
Shelf Dimension(m)
2.8*1.2(Can be customized)
Number of Product Trays
72pcs
Refrigerant
R404a(Can be customized)
Weight(kg)
7000kg
Quality Components in Kassel's Freeze Dryer

Control system(Siemens PLC)

Siemens PLC is adopted for control system. All electrical components are compatible with local supplies including voltage, frequency, overload protection and so on.

Food Tray(SUS304L)

The SUS304L stainless steel product trays are designed for freeze dryer to process liquid material mainly.

Vapor Condenser

The vapor condenser is located in the rear half of the chamber or lower half, and is constructed from SUS304L, 25mm round tube.
Refrigeration of the vapor condenser is by direct expansion.
Successful Project:

Why Choose Us?

1. Any parts of our freeze dryer can be Customized:
* Any parts of the freeze dryer can be customzied to meet your needs. The power supply, tray size, size of machine, SIP/CIP functions, and even brands of our components(compressor and vacuum system) can be customized.
* By customizing all the components, you are able to get a freeze dryer that suits your needs and budgets completely.
The price may vary as the detailes changing, please do contact us for more information.

2. We provide professional customer service:
Pre-sale:
* As soon as we get your inquiry, we will always reply to your email on time and try our best to recommend you the most suitable freeze dryer. Detailed tech-info will also be provided for you.
* We can do sample test for customers.
After-sale:
* If possible, please do come to our factory and we will teach workers the whole process of freeze drying. The most appropriate time needed for freeze drying will be tested by us.
* We will keep in touch with you, to make sure every parts of the freeze dryer work well. One year warranty, free online service.
Company History
Hangzhou Kassel Machinery was founded in 2010. In 2018 our company renamed into Kassel Machinery(Zhejiang)Co., Ltd, and moved to Tianzihu Ind. Zone.
Kassel freeze dryer has high production efficiency, high precision and only require simple operation.
Our company advocates customizing freeze dryers for customers to meet the different needs of customers. Come and join us!
FAQs:
Q1： Is it all right to make customer's own brand name?
A：Yes, we will meet the needs of customers.
Q2：Are you a manufacturer or trading company?
A: We are the manufacturer with decades of research and development production experience.
Q3: Can you do the design for us?
A: Sure.We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer’s need well.
Q4: How can I get a sample to check your quality?
A: We could send you the samples but the freight and the sample are charged.
Q5: How long can I expect to get the sample?
A:We will send the samples to you within 30 days after confirming your needs, and the sample arrival time depends on our distance.
Q6: Packaging & Shipping:
A:Export Wooden case&FOB Shanghai.
Certificates:
Recommended Products:
Product Overview:

KFD-30 Vacuum Freeze Dryer

This freeze dryer is able to dry fresh food material without nutrition lost, and meanwhile preserves its original taste, flavor
and color. Any detailed parameters can be customized until it meets customers’ requirements.
Our product has one year warranty, and our team has years of experience in this freeze drying field.
For more detailed information, please contact us anytime!
Samples of Freeze Dried Beef By using KFD-5
For other sample pictures of freeze dried food, please contact us.
Comparison of Direct Drying and Freeze Drying
Parameters:
Model
KFD-30
Power
380V/50Hz/3P(Can be customized)
Type
Radiant Type
Capacity(kg/batch)
300kg
Condenser Temperature(℃)
-50℃
Shelf Temperature(℃)
<100℃
Pre-freezing
in IQF(Individual Quick Freezer, provided with machine)
Usable Shelf Area(㎡)
30㎡
Number of Shelves
9+1
Shelf Dimension(m)
2.8*1.2(Can be customized)
Number of Product Trays
72pcs
Refrigerant
R404a(Can be customized)
Weight(kg)
7000kg
Quality Components in Kassel's Freeze Dryer

Control system(Siemens PLC)

Advantech PLC is adopted for control system. All electrical components are compatible with local supplies including voltage, frequency, overload protection and so on.

Food Tray(SUS304L)

The SUS304L stainless steel product trays are designed for freeze dryer to process liquid material mainly.

Vapor Condenser

The vapor condenser is located in the rear half of the chamber or lower half, and is constructed from SUS304L, 25mm round tube.
Refrigeration of the vapor condenser is by direct expansion.
Successful Project:

Why Choose Us?

1. Any parts of our freeze dryer can be Customized:
* Any parts of the freeze dryer can be customzied to meet your needs. The power supply, tray size, size of machine, SIP/CIP functions, and even brands of our components(compressor and vacuum system) can be customized.
* By customizing all the components, you are able to get a freeze dryer that suits your needs and budgets completely.
The price may vary as the detailes changing, please do contact us for more information.

2. We provide professional customer service:
Pre-sale:
* As soon as we get your inquiry, we will always reply to your email on time and try our best to recommend you the most suitable freeze dryer. Detailed tech-info will also be provided for you.
* We can do sample test for customers.
After-sale:
* If possible, please do come to our factory and we will teach workers the whole process of freeze drying. The most appropriate time needed for freeze drying will be tested by us.
* We will keep in touch with you, to make sure every parts of the freeze dryer work well. One year warranty, free online service.
Company History
Hangzhou Kassel Machinery was founded in 2010. In 2018 our company renamed into Kassel Machinery(Zhejiang)Co., Ltd, and moved to Tianzihu Ind. Zone.
Kassel freeze dryer has high production efficiency, high precision and only require simple operation.
Our company advocates customizing freeze dryers for customers to meet the different needs of customers. Come and join us!
FAQs:
Q1： Is it all right to make customer's own brand name?
A：Yes, we will meet the needs of customers.
Q2：Are you a manufacturer or trading company?
A: We are the manufacturer with decades of research and development production experience.
Q3: Can you do the design for us?
A: Sure.We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer’s need well.
Q4: How can I get a sample to check your quality?
A: We could send you the samples but the freight and the sample are charged.
Q5: How long can I expect to get the sample?
A:We will send the samples to you within 30 days after confirming your needs, and the sample arrival time depends on our distance.
Q6: Packaging & Shipping:
A:Export Wooden case&FOB Shanghai.
Certificates:
Recommended Products:
